Woodpecker Motopex-M Brushless Endomotor

Brand
Woodpecker

Inhouse product


Price
₹31,000.00 ₹35,000.00 /kg 11% OFF
Color
Quantity
(30 available)
Total Price
Share Now
Top Selling Products

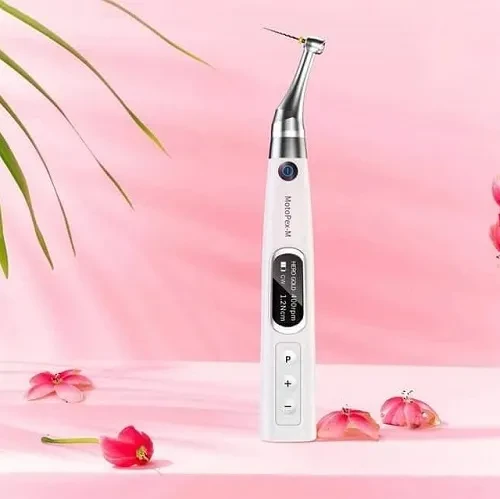

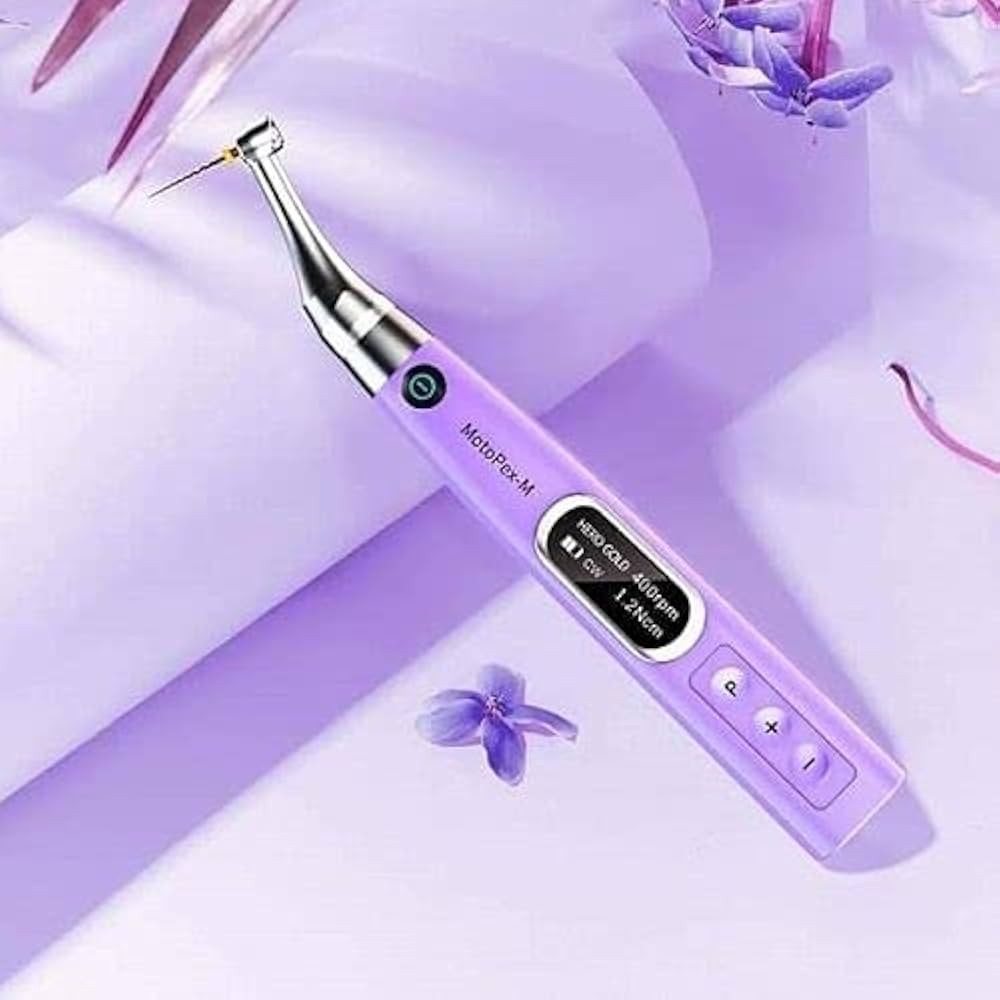

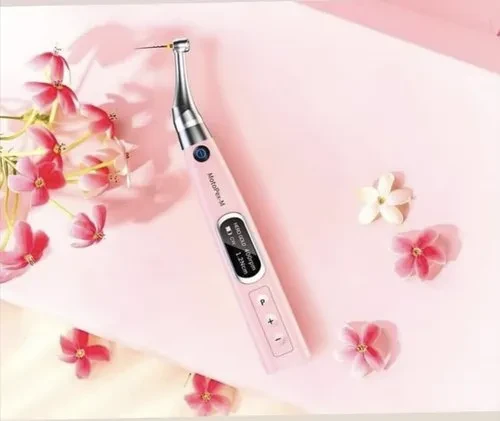

Woodpecker Motopex-M Endomotor is a cordless and colourful endomotor manufactured by Woodpecker. It is specifically designed for use in the biomechanical preparation of root canals during endodontic procedures. The device is equipped with various advantageous features that enhance its performance and efficiency. One of the notable features of the Motopex-M is its brushless motor, which ensures a quieter operation with minimal vibrations. This makes the endo motor more comfortable for both the dentist and the patient during the procedure. Additionally, the brushless motor provides a more powerful and precise rotation, enabling precise control over the instrument. The endomotor also features the smallest contra-angle head with a 6:1 gear ratio. The slim neck design allows for better accessibility and manoeuvrability in tight spaces, facilitating the dentist's work. Furthermore, the Motopex-M is designed with a balance weight distribution, ensuring stability and ease of use.

INDICATION:

  • Used in biomechanical preparation of root canals.

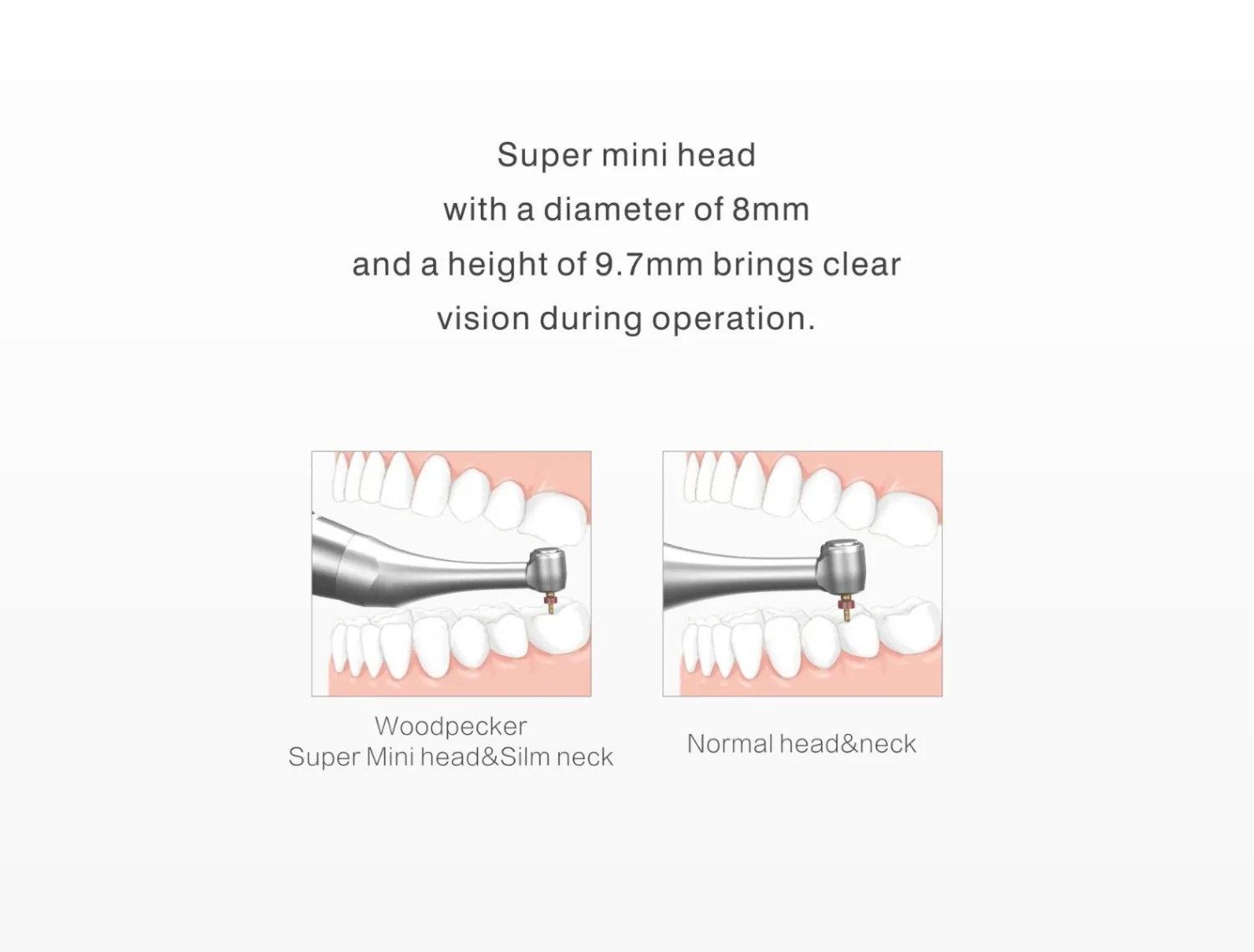

  • Super Mini Head with Slim neck gives Extra space to work in Posterior teeth and limited mouth opening cases.
  • Super Powerful Brushless motor gives accurate and stable Torque output.
  • Wide range of Reciprocating angles available from 20-340 degrees.

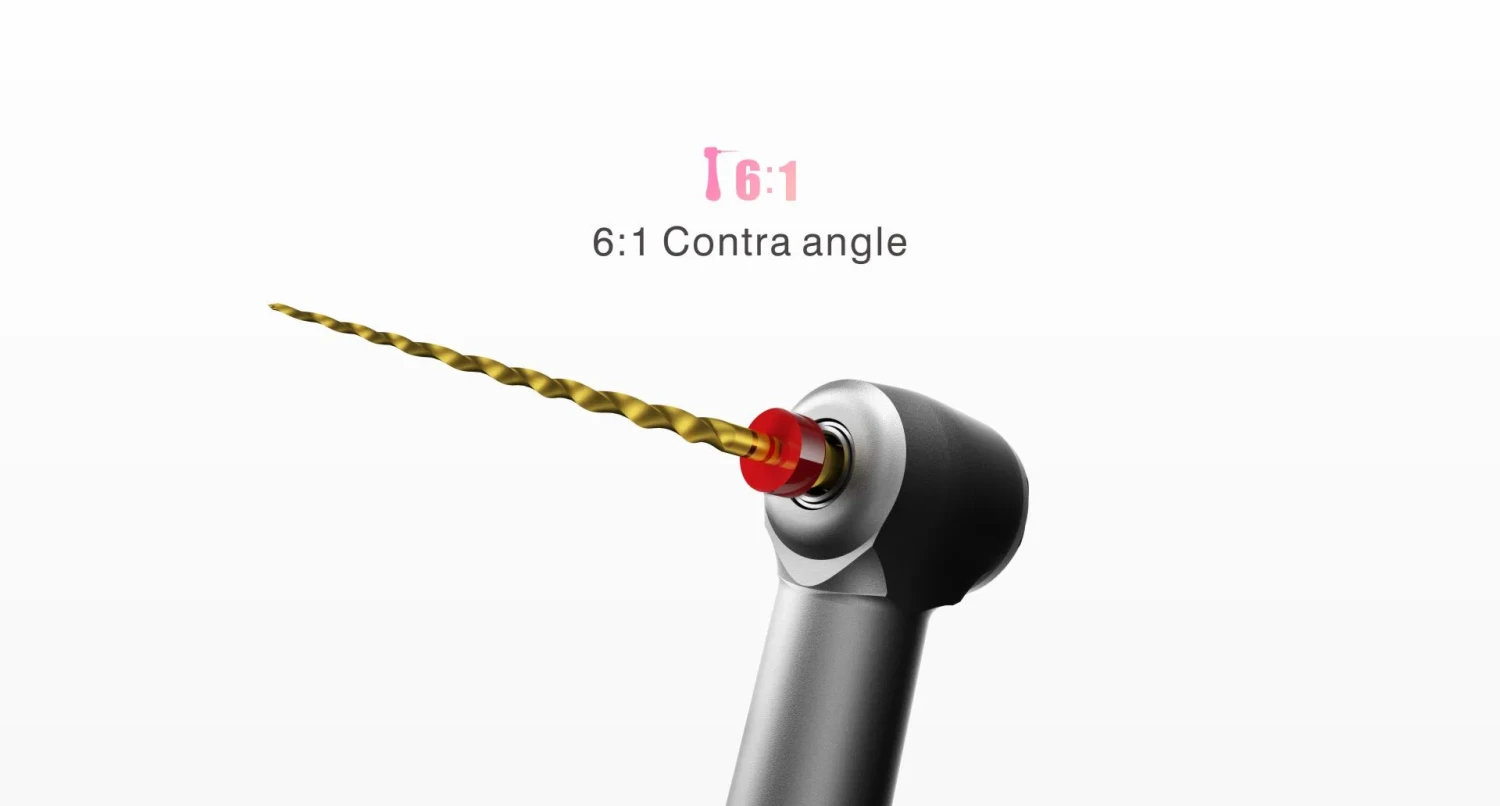

  • Latest 6:1 Reduction Handpiece for optimal Speed Control
  • Adaptive Torque reverse Function minimizes Breakage of Files.
  • Long lasting Battery. One charge lasts UpTo 30 days.
  • Wide range of adjustable speed from 100-1200 RPM.
  • Wide range of adjustable Torque from 0.4-5 Ncm.
  • 10 User-defined customizable Modes.
  • 1Selection of Dominant Right / Left Hand

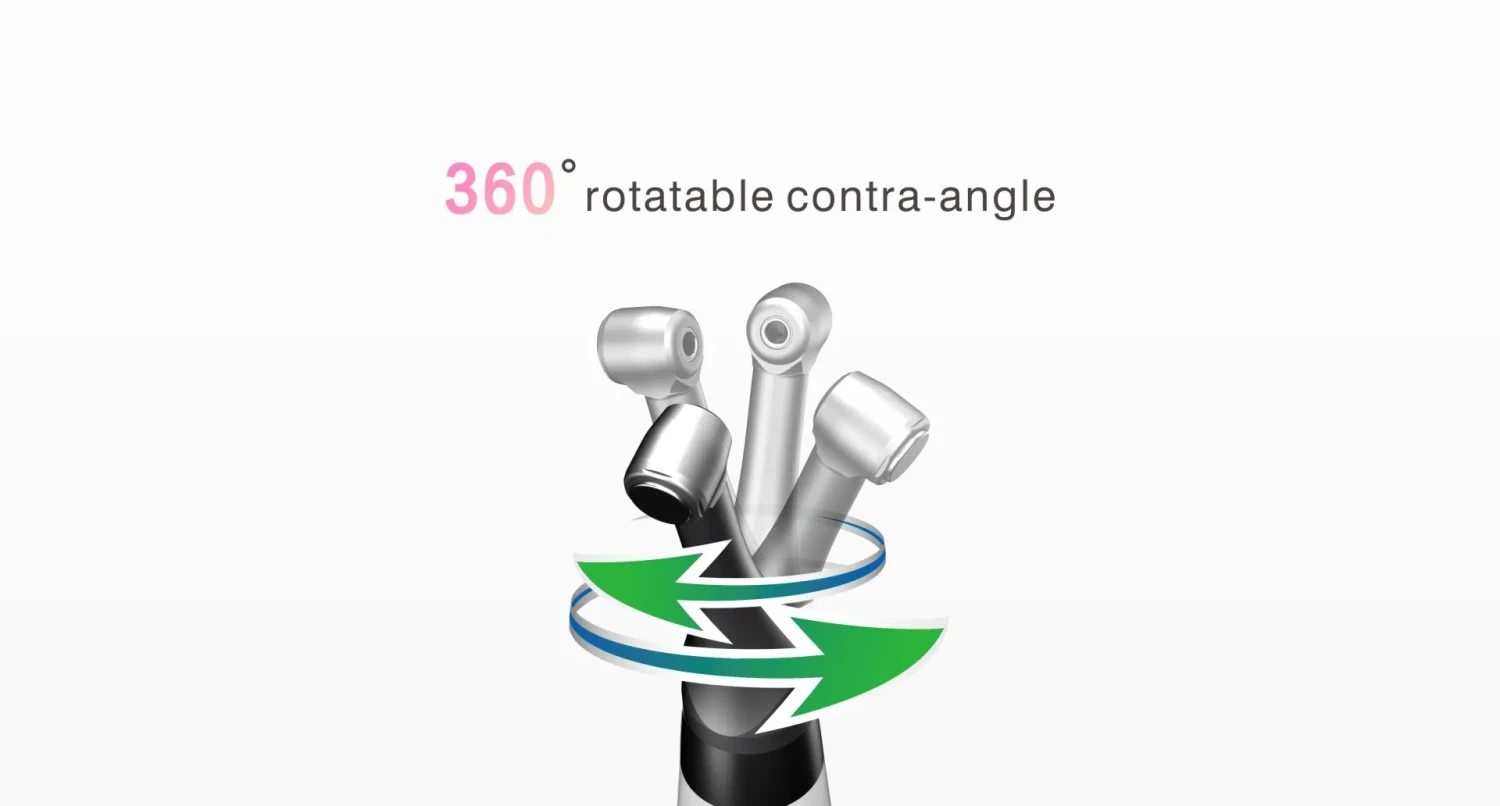

  • Contra angle head rotatable Up To 360
  • Available in 3 colors White, Purple, and Pink
  • Auto Start and Stop Function.

Advantages:

  • 1st Brushless Endomotor by DTE / Woodpecker.
  • Slim Neck.
  • More Powerful.
  • Precise Rotation.
  • Lower Noise.
  • Balance Weight.
  • Endodontic treatment is safer and more efficient.

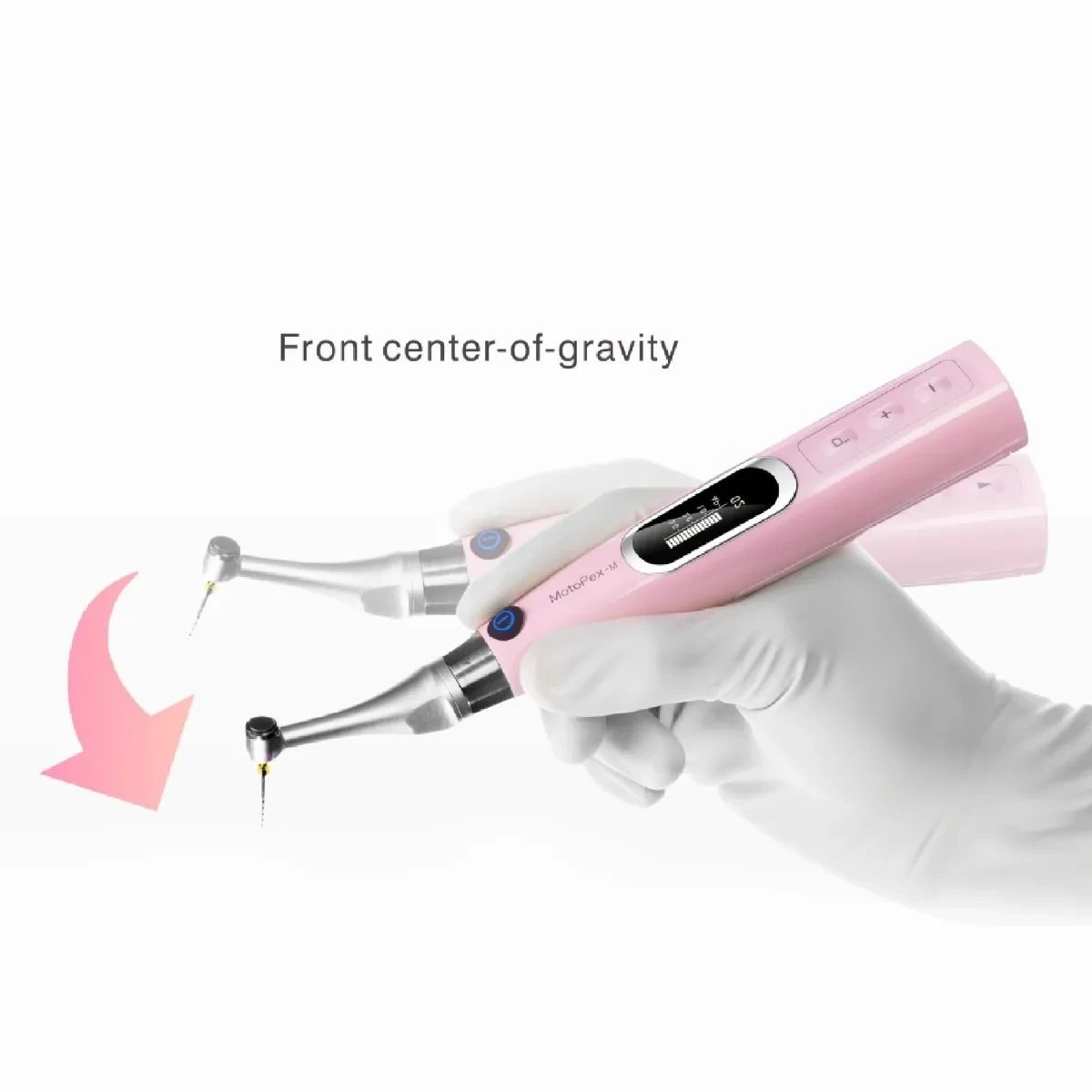

  • Front Centre of Gravity.

Mode

  • CW Mode: In this mode, the motor handpiece rotates forward 360° in a clockwise direction.
  • CCW Mode: This mode is used for the counterclockwise rotation of the motor handpiece. It is typically used to inject calcium hydroxide and other medicaments.
  • REC Mode: This mode is for reciprocating motion. The forward and reverse angles can be adjusted between 20° and 340°. It is used with reciprocating files like Micromega OneReci
  • ATR Mode: ATR stands for Adaptive Torque Reverse function. In this mode, the motor handpiece rotates continuously forward with a set angle between 120° and 340°. When the file load exceeds the set torque limit, the file will rotate alternately at the set angle. It is used with various torque and speed settings.

    Technical Specificaton:


    Lithinium battery in motor handpiece3.7 V / 2000 mAH
    Input100V-240V 50Hz/60Hz 400mA
    Torque range0.4Ncm – 5.0 Ncm
    Speed Range100 rpm – 1200 rpm


    • Assembly: Attach the desired contra-angle head to the motor handpiece by aligning the connectors and gently twisting them until they are securely locked in place. Ensure that the contra-angle head is properly seated before proceeding.
    • Charging the device: Before starting, ensure that the Motopex-M is fully charged. Connect the charging cable to the charging port on the motor handpiece, and plug the other end into a power source. Allow the device to charge until the battery is fully replenished.
    • Powering on/off: To power on the Motopex-M, press and hold the power button located on the motor handpiece. Release the button when the device turns on. To power off the device, repeat the same process.
    • Speed and torque adjustment: Use the speed and torque adjustment buttons located on the motor handpiece to set the desired rotation speed and torque level. Press the respective buttons to increase or decrease the values until you reach the desired settings.
    • Inserting the instrument: Prepare the root canal by following standard endodontic protocols. Once ready, gently insert the endodontic instrument into the root canal, taking care not to exert excessive force. Ensure that the Rotary File is properly secured within the contra-angle head.
    • Rotation direction: The Motopex-M allows for forward and reverse rotation. Choose the appropriate rotation direction based on the specific requirements of the procedure. Use the rotation direction switch located on the motor handpiece to change the direction of rotation.
    • Procedure execution: As you navigate through the root canal, maintain a steady and controlled hand movement. Monitor the instrument's progress and adjust the speed and torque settings as necessary to ensure optimal performance and patient comfort. Take breaks as needed to irrigate and clean the canal during the procedure.
    • Adaptive torque reverse reciprocation: The Motopex-M's adaptive torque reverse reciprocation feature automatically adjusts the torque and direction of rotation based on the resistance encountered in the root canal. This feature enhances safety and efficiency. Allow the device to respond to the resistance and adjust the instrument's movement accordingly.
    • Battery monitoring: Keep an eye on the battery level indicator on the motor handpiece. If the battery is running low during the procedure, consider pausing and recharging the device before continuing.
    • 1 x Endo motor Unit
    • 1 x Charging Unit
    • 1 x Power Adapter
    • Instruction manual
    • Country of Origin: PRC
    • Manufacturer: Woodpecker

    Manufacturer/Importer warranty of 1 Year as applicable for this product.

    Woodpecker Motopex-M Endomotor is a cordless and colourful endomotor manufactured by Woodpecker. It is specifically designed for use in the biomechanical preparation of root canals during endodontic procedures. The device is equipped with various advantageous features that enhance its performance and efficiency. One of the notable features of the Motopex-M is its brushless motor, which ensures a quieter operation with minimal vibrations. This makes the endo motor more comfortable for both the dentist and the patient during the procedure. Additionally, the brushless motor provides a more powerful and precise rotation, enabling precise control over the instrument. The endomotor also features the smallest contra-angle head with a 6:1 gear ratio. The slim neck design allows for better accessibility and manoeuvrability in tight spaces, facilitating the dentist's work. Furthermore, the Motopex-M is designed with a balance weight distribution, ensuring stability and ease of use.

    INDICATION:

    • Used in biomechanical preparation of root canals.


    • Super Mini Head with Slim neck gives Extra space to work in Posterior teeth and limited mouth opening cases.
    • Super Powerful Brushless motor gives accurate and stable Torque output.
    • Wide range of Reciprocating angles available from 20-340 degrees.
    • Latest 6:1 Reduction Handpiece for optimal Speed Control
    • Adaptive Torque reverse Function minimizes Breakage of Files.
    • Long lasting Battery. One charge lasts UpTo 30 days.
    • Wide range of adjustable speed from 100-1200 RPM.
    • Wide range of adjustable Torque from 0.4-5 Ncm.
    • 10 User-defined customizable Modes.
    • 1Selection of Dominant Right / Left Hand
    • Contra angle head rotatable Up To 360
    • Available in 3 colors White, Purple, and Pink
    • Auto Start and Stop Function.

    Advantages:

    • 1st Brushless Endomotor by DTE / Woodpecker.
    • Slim Neck.
    • More Powerful.
    • Precise Rotation.
    • Lower Noise.
    • Balance Weight.
    • Endodontic treatment is safer and more efficient.
    • Front Centre of Gravity.

    Mode

    • CW Mode: In this mode, the motor handpiece rotates forward 360° in a clockwise direction.
    • CCW Mode: This mode is used for the counterclockwise rotation of the motor handpiece. It is typically used to inject calcium hydroxide and other medicaments.
    • REC Mode: This mode is for reciprocating motion. The forward and reverse angles can be adjusted between 20° and 340°. It is used with reciprocating files like Micromega OneReci
    • ATR Mode: ATR stands for Adaptive Torque Reverse function. In this mode, the motor handpiece rotates continuously forward with a set angle between 120° and 340°. When the file load exceeds the set torque limit, the file will rotate alternately at the set angle. It is used with various torque and speed settings.

      Technical Specificaton:


      Lithinium battery in motor handpiece3.7 V / 2000 mAH
      Input100V-240V 50Hz/60Hz 400mA
      Torque range0.4Ncm – 5.0 Ncm
      Speed Range100 rpm – 1200 rpm


      • Assembly: Attach the desired contra-angle head to the motor handpiece by aligning the connectors and gently twisting them until they are securely locked in place. Ensure that the contra-angle head is properly seated before proceeding.
      • Charging the device: Before starting, ensure that the Motopex-M is fully charged. Connect the charging cable to the charging port on the motor handpiece, and plug the other end into a power source. Allow the device to charge until the battery is fully replenished.
      • Powering on/off: To power on the Motopex-M, press and hold the power button located on the motor handpiece. Release the button when the device turns on. To power off the device, repeat the same process.
      • Speed and torque adjustment: Use the speed and torque adjustment buttons located on the motor handpiece to set the desired rotation speed and torque level. Press the respective buttons to increase or decrease the values until you reach the desired settings.
      • Inserting the instrument: Prepare the root canal by following standard endodontic protocols. Once ready, gently insert the endodontic instrument into the root canal, taking care not to exert excessive force. Ensure that the Rotary File is properly secured within the contra-angle head.
      • Rotation direction: The Motopex-M allows for forward and reverse rotation. Choose the appropriate rotation direction based on the specific requirements of the procedure. Use the rotation direction switch located on the motor handpiece to change the direction of rotation.
      • Procedure execution: As you navigate through the root canal, maintain a steady and controlled hand movement. Monitor the instrument's progress and adjust the speed and torque settings as necessary to ensure optimal performance and patient comfort. Take breaks as needed to irrigate and clean the canal during the procedure.
      • Adaptive torque reverse reciprocation: The Motopex-M's adaptive torque reverse reciprocation feature automatically adjusts the torque and direction of rotation based on the resistance encountered in the root canal. This feature enhances safety and efficiency. Allow the device to respond to the resistance and adjust the instrument's movement accordingly.
      • Battery monitoring: Keep an eye on the battery level indicator on the motor handpiece. If the battery is running low during the procedure, consider pausing and recharging the device before continuing.

      • 1 x Endo motor Unit
      • 1 x Charging Unit
      • 1 x Power Adapter
      • Instruction manual

      • Country of Origin: PRC
      • Manufacturer: Woodpecker

      Manufacturer/Importer warranty of 1 Year as applicable for this product.
