Inhouse product
Advantages:
EXPOSURE CHART | OBJECT | TIME (70kV 8mA) |
---|---|---|
Maxillary | Molars | 0.6 Sec |
Bicuspids | 0.5 Sec | |
Cuspids | 0.4 Sec | |
Incisors | 0.3 Sec | |
Mandibular | Molars | 0.5 Sec |
Bicuspids | 0.4 Sec | |
Cuspids | 0.3 Sec | |
Incisors | 0.3 Sec |

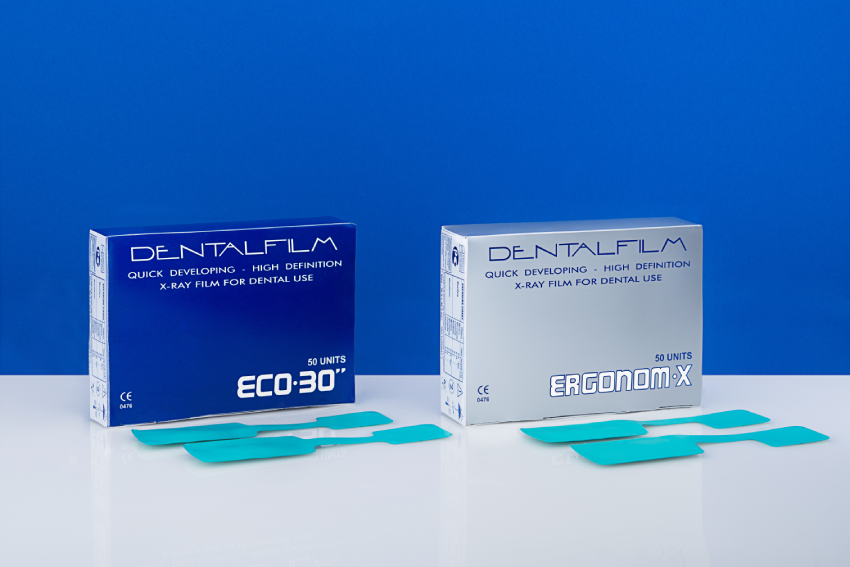

BOX CONTENT: 50 films - Size 30.5 mm x 40.5 mm.

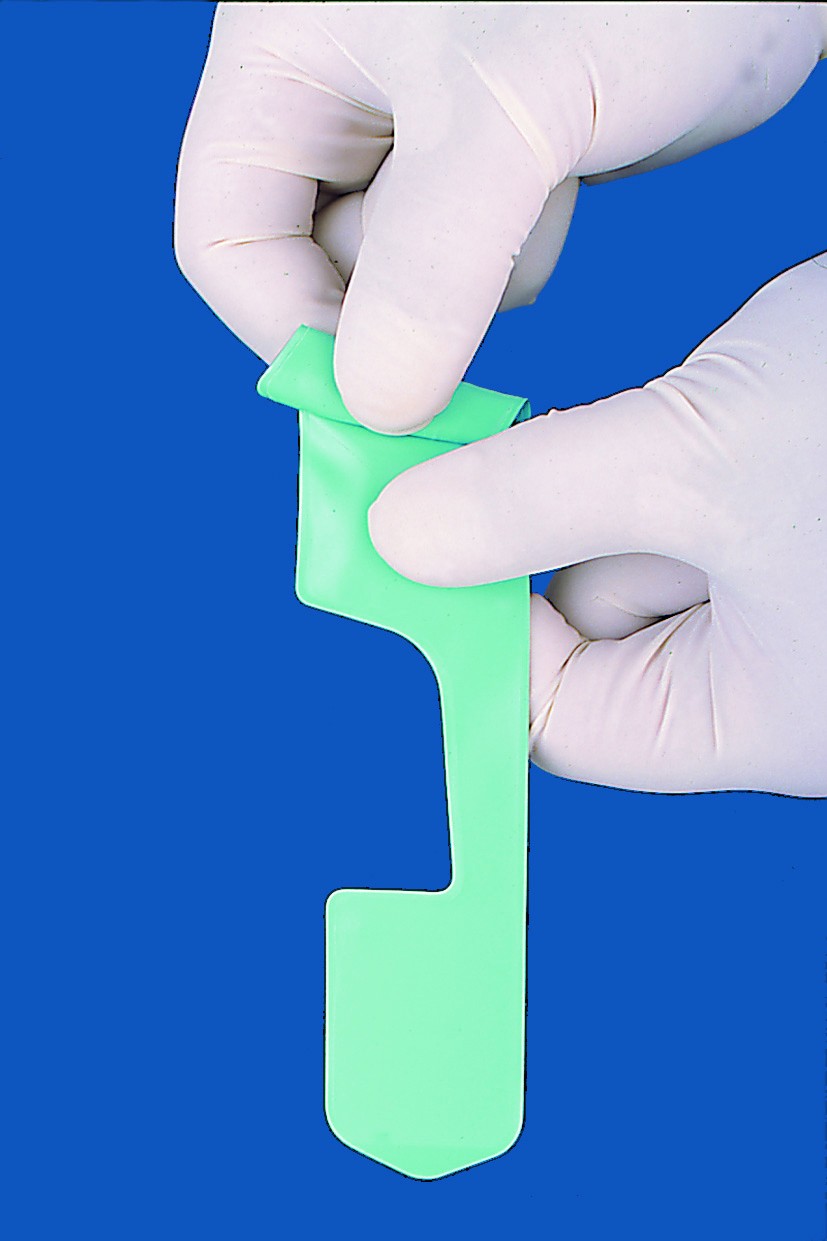

STEP 1: After exposure to x-rays, and holding ECO 30 upright, open the liquid pouch by rolling it up. It is important to squeeze the pouch to its extremity, ensuring that all the monobath travels to the opposite film end, then un-roll it.
STEP 2: Start agitating by sliding the fingers from the top all way down to the bottom of the film, repeating this movement for 50 secs/1 minute It is important to Agitate: constantly, for 50 secs and immediately after the monobath pouch has been opened, otherwise image may result spotted.

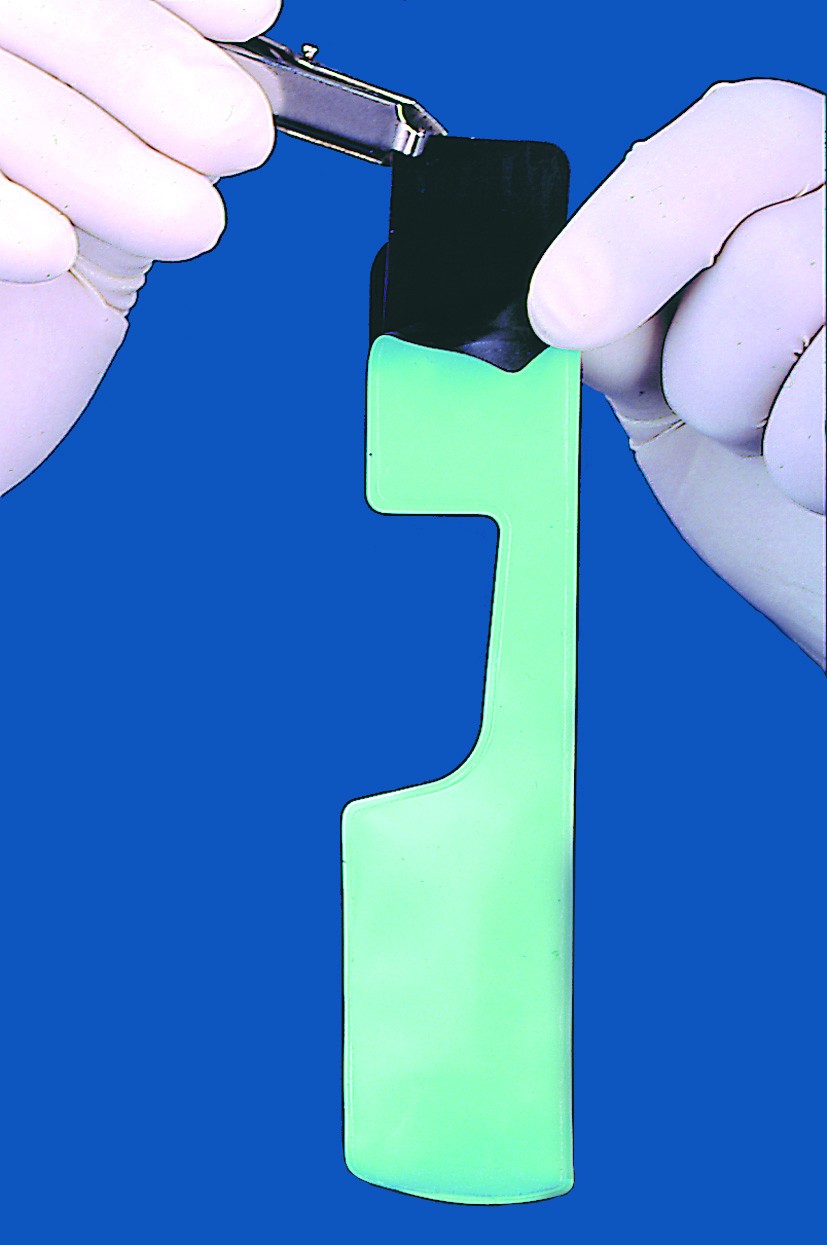

STEP 3: When development and fixation are complete, turn the film upside down, pushing the monobath back into its original place. Open film by prising apart, remove the film and rinse it under water, even by sliding the fingers on its surface to remove all the monobath residual, otherwise the picture may turn yellow.
Country Of Origin - United Arab Emirates
Manufacturer - Dental Film
