• Durable and Flexible needle ensures accurate positioning.
• Continuous operation for uninterrupted workflow.
• Quick and safe heating system.
• Cordless design enhances manoeuvrability.
• Battery compatibility with various disinfectants.
• Easy sterilization chemical-resistant materials. Versatile for both mandible and maxilla.
• Controlled heating; prevents discomfort and damage.
• Comprehensive kit for streamlined root canal procedures.

• Precise heating of gutta-percha for effective filling.

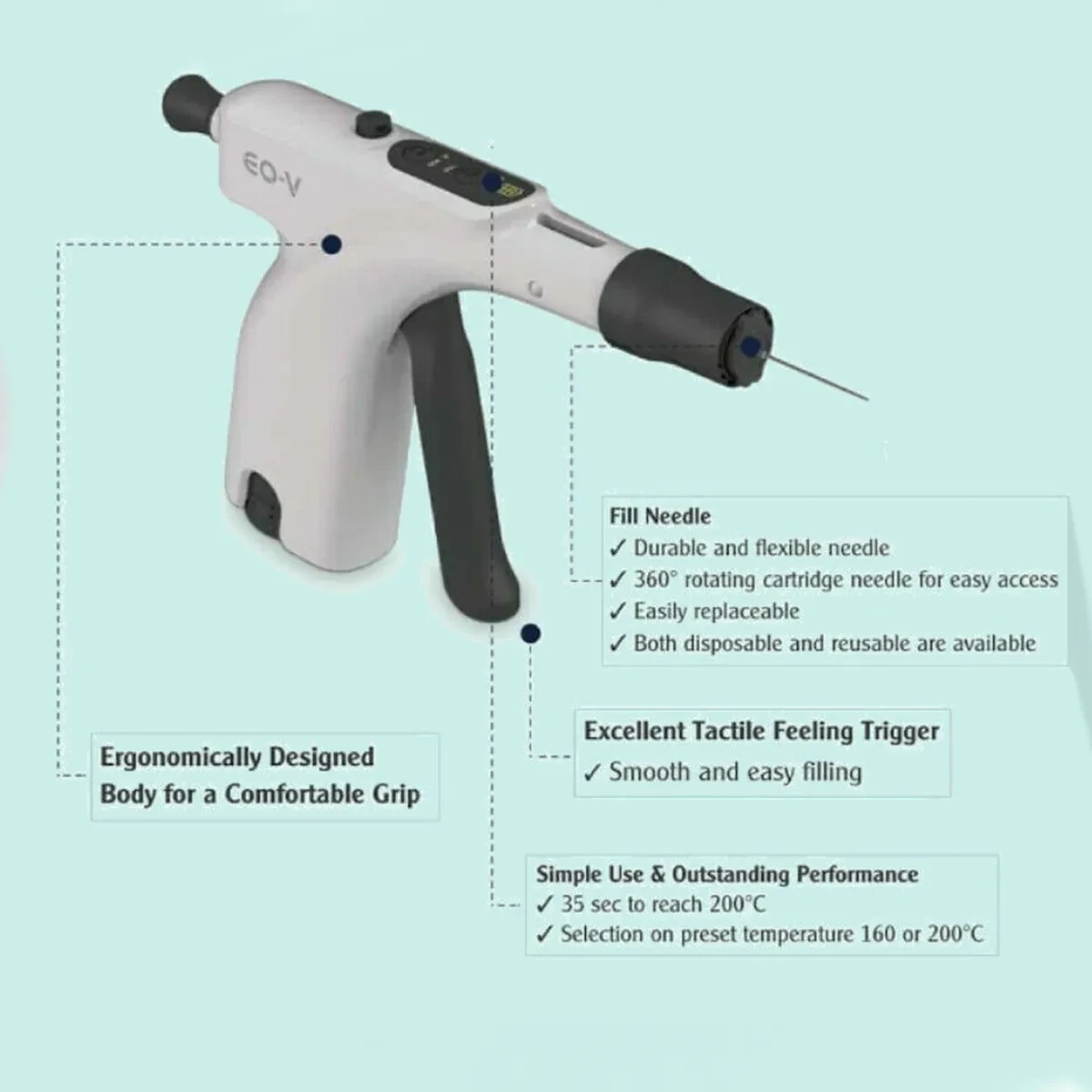

EQ-V Fill

• Needle: Durable, flexible for accurate positioning.
• Cartridge System: 360-degree rotating for easy handling.
• Continuous Operation: Up to 1 hour for uninterrupted workflow.
• Safe Heating System: 360 Activation Ring Button, 4 seconds to prevent damage.

Heating Times

• EQ-V Fill: Heater DC 3.8V, 8W, Heating Time: 35 seconds.

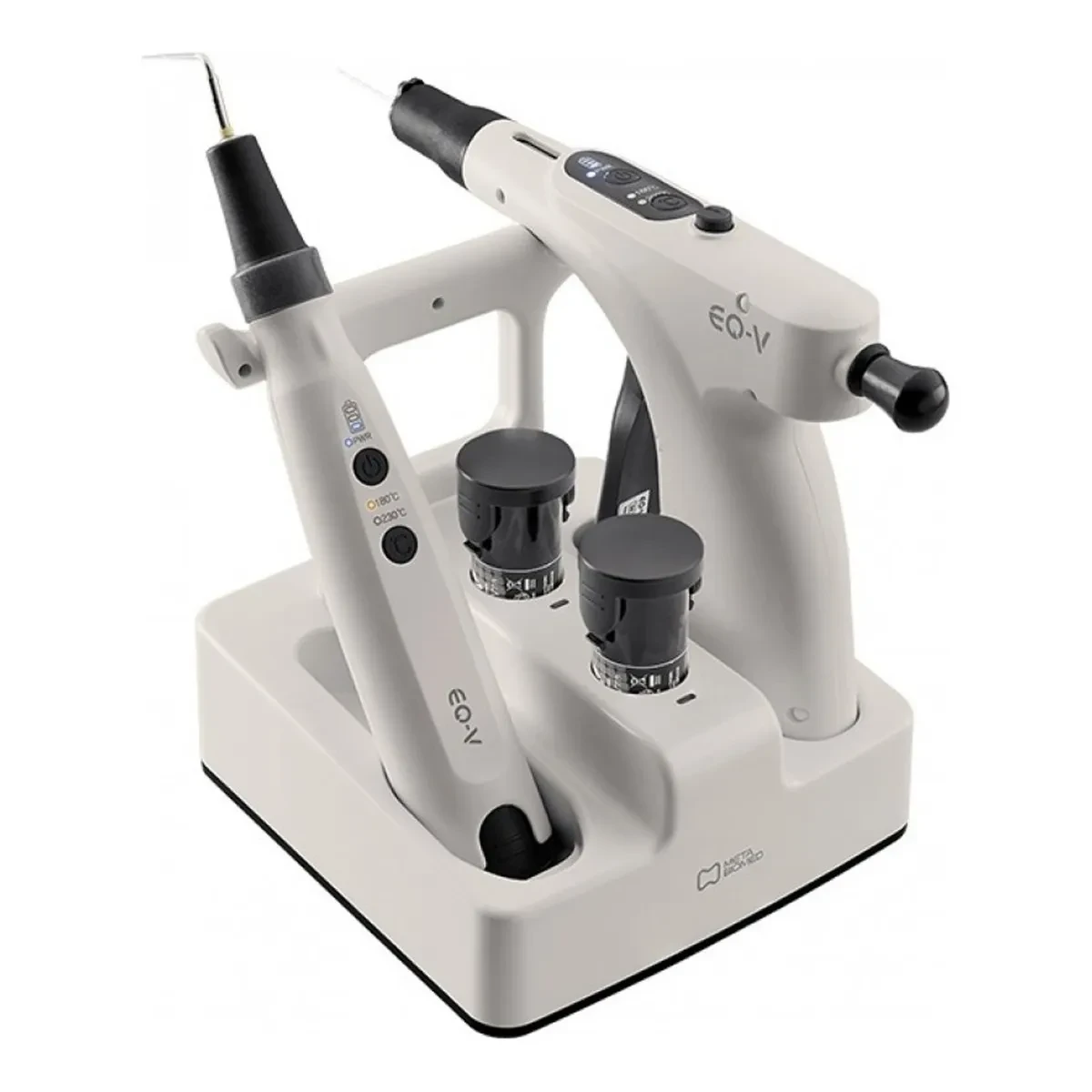

• Fill Unit-1
• Battery-2
• Dual Charger-1
• Refill Cartridge (25G 6pcs/1pack)-1
• Bending Tool-1
• Cleaning Tool-1
• AC Adapter-1
• Power Cord-1
• GP bar 100pcs / bottle-1

Preparation:

• Ensure the devices battery is adequately charged.
• Prepare the root canal according to standard protocols.

Select Master Cone:

• Choose an appropriate master cone and place it into the prepared root canal.
• Check for the Tug-back sensation to confirm proper fit.

EQ-V Usage:

• Apply root canal sealer to the end of the master cone and insert it into the canal.
• Attach the EQ-V Pack tip.
• Insert the pack tip into the root canal, positioning it 5mm shorter than the working length.
• Select the appropriate EQ-V condenser from the set.

Heating and Compacting:

• Use the EQ-V Pack tip to cut the upper part of the master cone with heated EQ-V Pack tip.
• Compact the softened gutta-percha down with a condenser.
• Activate the pack tip while inserting it 2mm short of the reference point.
• Once the pack tip is activated, stop and gently push it using residual heat. Hold for 10 seconds to cool it down.

Further Compaction:

• With residual heat, condense the gutta-percha up to the reference point.
• Activate the pack tip for 1 second to release any remaining heat.
• Quickly remove the device, leaving gutta-percha only from the apex to 5mm.

Apical Compaction:

• Compact the remaining gutta-percha in the apical part using a condenser.

EQ-V Fill Cartridge:

• Insert the GP bar into the EQ-V Fill device.
• Set the desired temperature.

Injection of GP:

• Before injecting the needle into the canal, check if melted gutta-percha is coming out of the needle.
• Place the EQ-V Fill cartridge tip right upon the gutta-percha in the apical part.
• Inject melted gutta-percha by pulling the trigger around 3mm.

Post-Injection Compaction:

Immediately after finishing the injection of gutta-percha, compact it with an EQ Condenser.

Repeat Steps:

• Repeat steps 8 and 9 until the root canal is fully obturated.

Procedure Completion:

• Ensure proper obturation and sealing of the root canal.

Safety and Maintenance:

• Turn off the device and properly clean and disinfect all components.
• Remove the Li-ion battery for separate disinfection.
