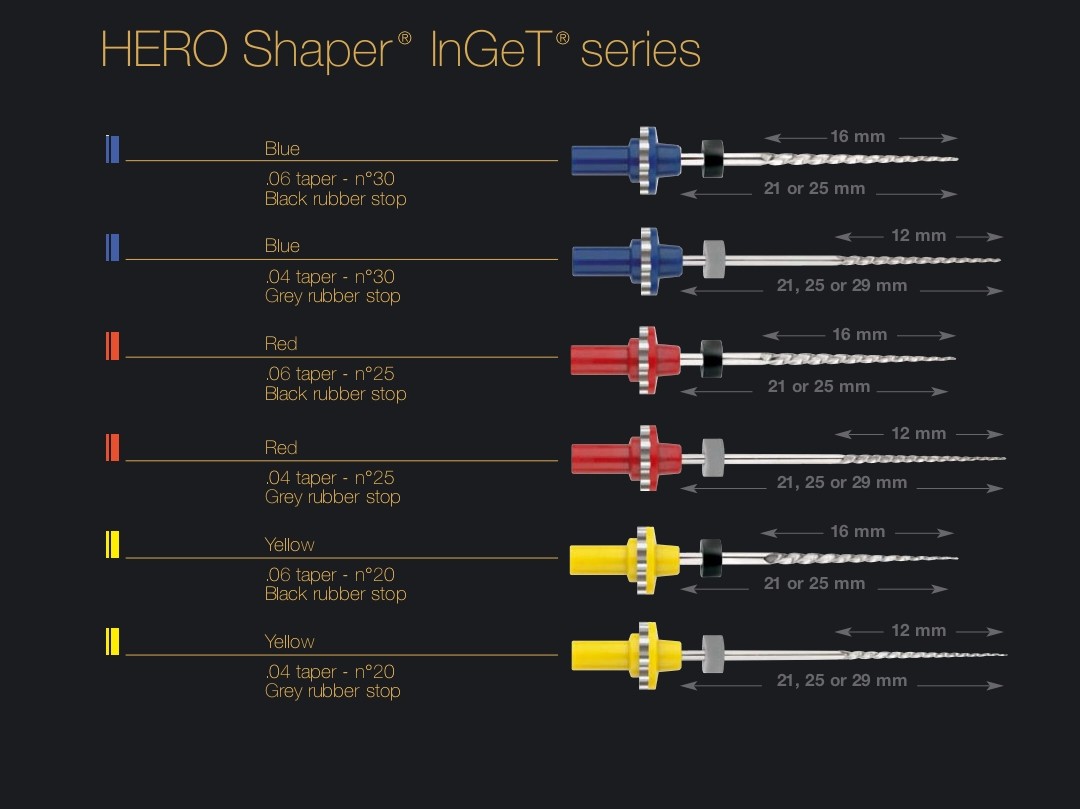

Hero Shaper files, with their pronounced tapers, are designed for use with the crown-down technique to progressively remove constraints and flare the canal. The coronal third is prepared using .06 taper Hero Shaper files and the apical third is prepared using .04 taper Hero Shaper files. The varying helical pitch and length of the cutting portion of the files provide them with an excellent combination of efficiency and flexibility. The main advantage of this file method is that it requires a reduced number of instruments to prepare a canal 2, 3 or 4 depending on the difficulty. This approach simplifies the process, reduces intervention time and minimizes the risks associated with the use of too many instruments, while maintaining precise and efficient canal preparation.

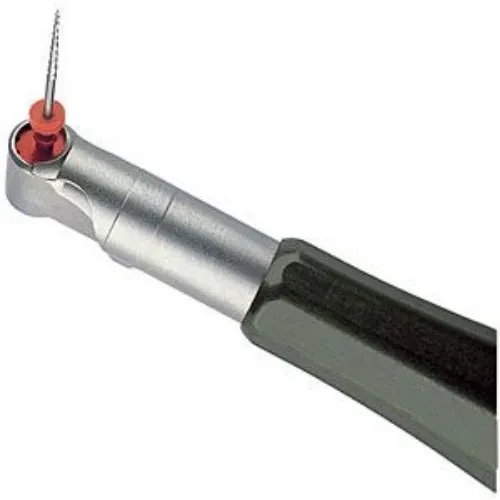

InGeT (Integrated Gear Technology) is a specific coupling concept between a file and a contra-angle, with the incorporation of the driving gear into the rotary file itself.
Benefits of the InGeT system Very compact head: 6.5 mm diameter and 7.5 mm high.
Innovative Pitch- Avoids screwing effects: the helical angle of the cutting edges varies from the tip to the shank. The new pitch also varies according to the taper: the more tapered an instrument is, the longer is its pitch; this can be described as an ADAPTED PITCH. Increased instrument performance: Efficiency / Flexibility / Strength
File Design-The blade shows a triple helix cutting edge. The tip is inactive in order to follow the canal anatomy. Positive rake angle for excellent debris evacuation. Big inner core for excellent resistance to breakage. 3 edges for better force balance. Increased safety with no screwing effect and excellent debris evacuation.
Anti-Breakage Control: The instrument “unwinds” to prevent the risk of fracture.
According to canal type
Rotation speed
First penetration
Penetration levels
Operating procedure
Irrigation

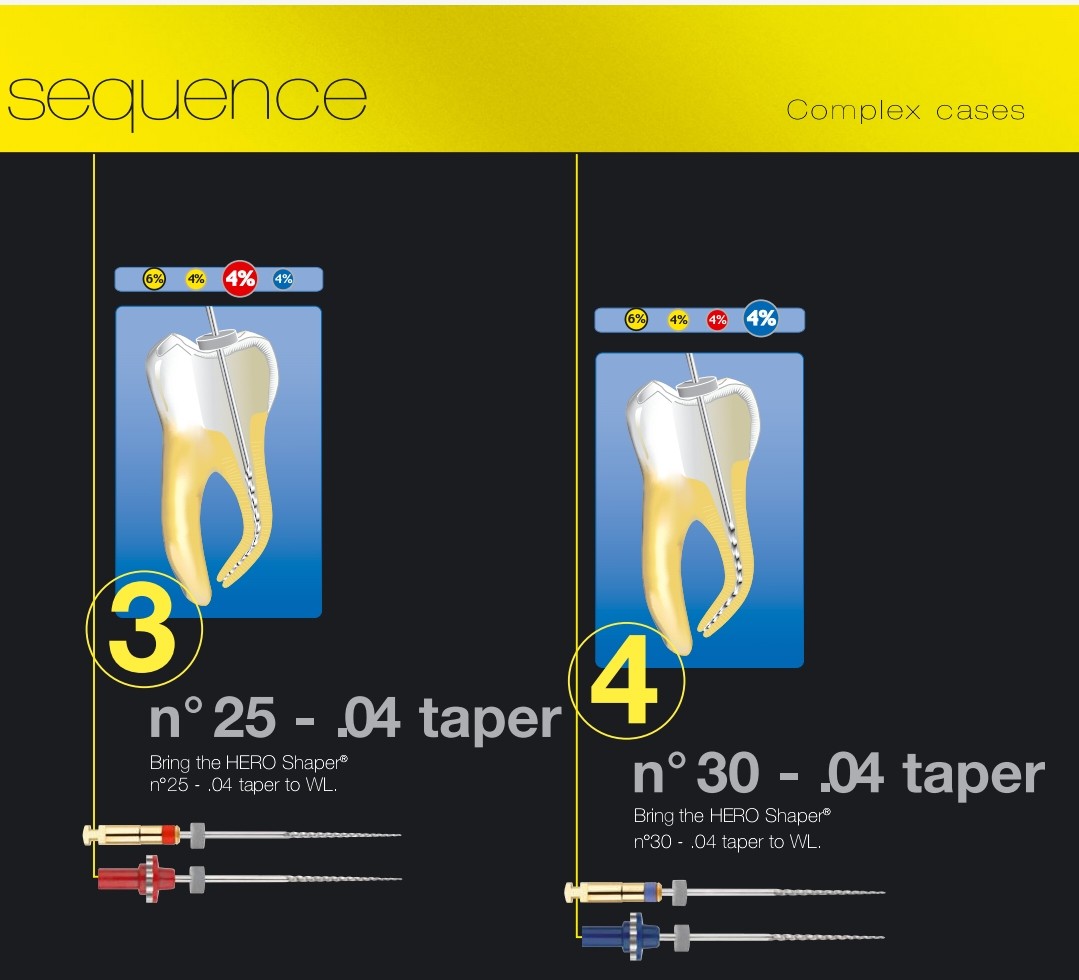

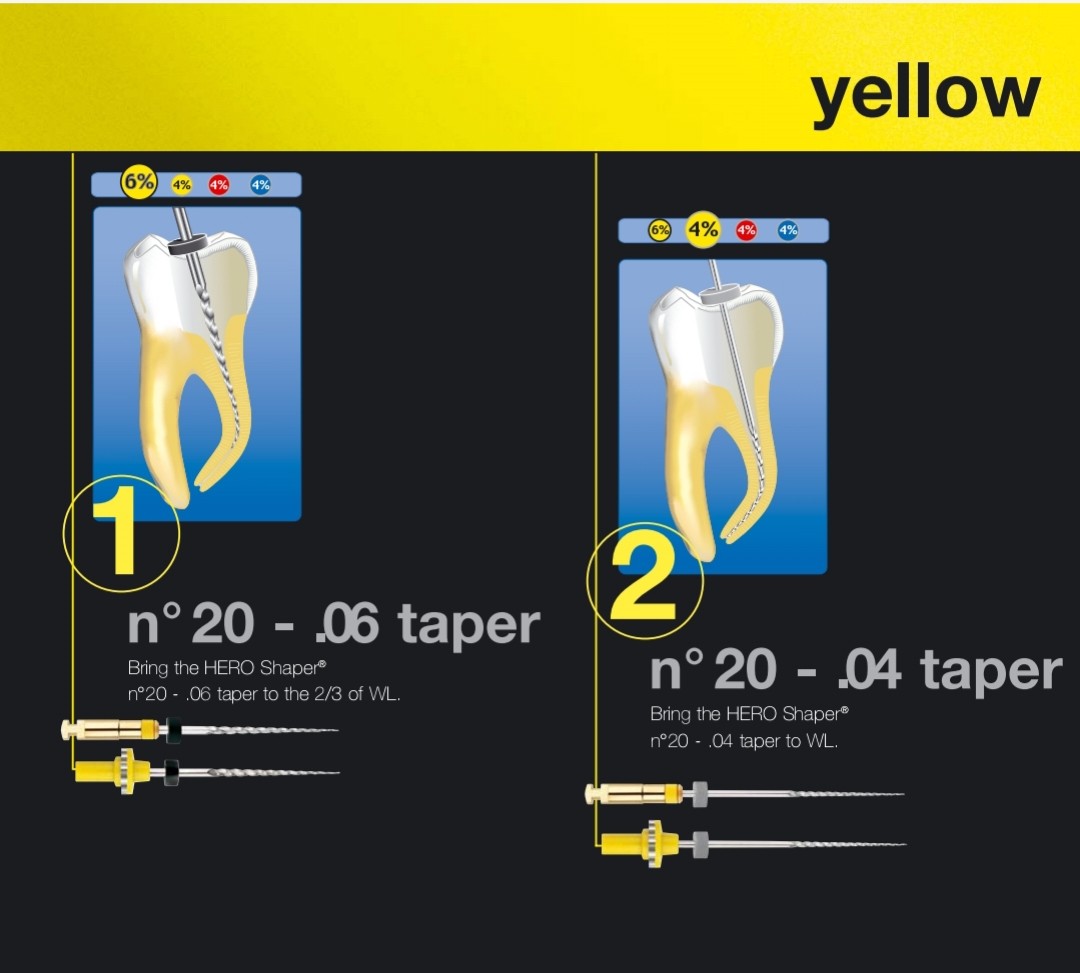

Yellow Sequence (Complex Cases)
1. Bring the HERO Shaper® n°20 - .06 taper to the 2/3 of Working Length.
2. Bring the HERO Shaper® n°20 - .04 taper to Woking Length.
3. Bring the HERO Shaper® n°25 - .04 taper to Working Length.
4. Bring the HERO Shaper® n°30 - .04 taper to Working Length.
Red Sequence (Intermediate Cases)
1. Bring the HERO Shaper® n°25 - .06 taper to the 2/3 of Working Length.
2. Bring the HERO Shaper® n°25 - .04 taper to Working Length.
3. Bring the HERO Shaper® n°30 - .04 taper to Working Length.
Blue Sequence (Simple Cases)
1. Bring the HERO Shaper® n°25 - .06 taper to the 2/3 of Working Length.
2. Bring the HERO Shaper® n°30 - .04 taper to Working Length.
